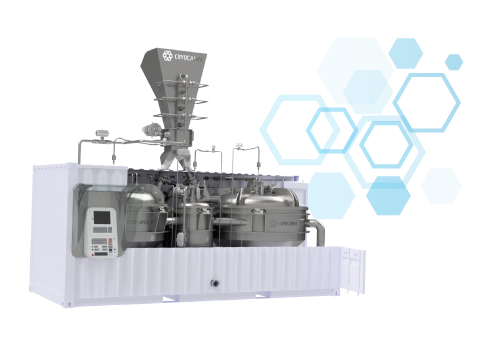

CryoMass Refinement Systems
CryoMass Refinement Systems
The CryoMass Refinement System uses patented technology to instantly freeze the whole plant and fully separates the trichomes, including THC, CBD and terpenes, from the biomass.
The patented process renders up to a 90% dried output material with a dramatic reduction in biomass volume of up to 80%. The resulting high purity, refined “cryogenic sift” can be warehoused at room temperature for extended periods of time or further processed into cannabis and hemp distillate or isolate for use in consumer products.
The New World Standard
Bringing never before seen efficiencies and options to cannabis and hemp growers.
Eliminate Drying and Trimming
Process fresh plant straight from the field and remove days of work
Green
Process
Using only nitrogen makes the process solventless for separating trichomes
Industrial
Capacity
Our largest unit can process up to 1,300 lb of fresh biomass per hour
Improve Extraction Throughput
Reduces the volume going into the extraction process by 85-90%
Cryogenic
Preservation
Process freezes the biomass to enable years of storage
Dramatically Improves Extraction
The CryoMass Refinement Systems drastically increase solvent based extraction volume by up to 400% due to the targeted separation of cellulose and plant matter from the essential terpenes and cannabinoids.
Safety In Mind
Enclosed in a C1D2 Container
Engineered to EU GMP Compliance
Built out of 316L Stainless Steel
Easy To Use
Clean-In-Place Ready
Continuous Production Capacity
Programmed & Automatic Operation
Safety In Mind
Enclosed in a C1D2 Container
Engineered to EU GMP Compliance
Built out of 316L Stainless Steel
Easy To Use
Clean-In-Place Ready
Continuous Production Capacity
Programmed & Automatic Operation
Find the Right Solution For You
Specifications (both models)
Compliance
- Components Certified to:
- UL 508/CSA C22.2 No. 142
- UL 508/CSA C22.2 No. 274
- UL 429/CSA-C22.2 No. 139
- Designed for Clean-In-Place (CIP)
- Designed to meet EudraLex/FDA cGMP Standards
Materials
- 316L Stainless Steel
- Surface Finishes – 32Ra or Better
- Welding Type – Certified TIG
Dimensions
- 7’10″H x 7’9″W x 19’4″L
- CRS 500 Approx. Net Weight: 11,550 lbs
- CRS 2000 Approx. Net Weight: 15,400 lbs
- Packing Specification: C1D2 20ft Container
Monitoring & Control Systems
- Flow Control System – Automatic proportional valves + CryoStar centrifugal pumps
- Security System – PLC Siemens
- Data Logger System – PLC Siemens
- Remote Monitoring & Control System of Variables – available independent telecommunications module with its own network
- Security System for Atmosphere Composition Control – sensor system for online compound analysis
Connectivity
- Electrical Connection – 220VAC 3~ 60Hz 90A
- Electrical Safety Systems – Overvoltage protection systems
- Complementary Electrical Systems – After a power outage, it returns to the process where it was before
A Team To Trust
The Team at CryoCann is committed to providing our customers with the most revolutionary and patented cannabis technology for harvesting, drying, refinement, and extraction. Our team of industry-leading experts utilizes our design, engineering, and manufacturing expertise to ensure that all of our products perform to the highest of standards. Helping our customers reach their goals is our number one priority!
